SunPower Corporation has a long rich history in solar manufacturing and many consider them to be the solar industry technology leader. This is a very big claim but it’s hard to disagree as they currently produce the most efficient residential solar panel with the lowest degradation and best performance warranty on the market. Although like most things, high performance comes at a high price.
SunPower started in a lab in the early 80’s and officially became SunPower in 1988. After securing funding from investors the R & D team developed record breaking PV cells using advanced cell technology (which were used by the NASA space program) along with Honda to win the world solar challenge car race in Australia. These achievements put SunPower on the world stage as one of the leading solar cell manufacturers, plus laid the foundation for the high-efficiency Maxeon IBC cells used today.
During the 2000’s SunPower expanded and built advanced facilities in the US, Mexico, Europe and Asia to manufacture high efficiency solar panels. Over the last decade the only other manufacturer able to compete at the same level of efficiency and performance was LG Energy with the Neon R range of panels which use a similar IBC cell technology.
However, it hasn’t all been smooth sailing for SunPower. Over recent years the company ran into serious financial issues and racked up a considerable level of debt due to high overhead costs and pressure from the extremely competitive Chinese and Korean panel manufacturers. The financial troubles forced SunPower to restructure its business and manufacturing operations and now the financial situation is looking more positive. See detailed company analysis in this article from PV-Tech.
SunPower Panel and Cell Technology
Maxeon IBC cells
SunPower began mass production of the high-performance IBC (Interdigitated Back Contact) cells back in 2007 and have led the industry ever since using what is considered the most efficient cell technology available today. Unlike the common monocrystalline and polycrystalline solar cells which use front mounted busbars and fingers to collect current, IBC cells have a fine grid of conductors integrated into the rear side of the cell. The IBC cell design which SunPower refers to as ‘Maxeon’ uses a grid of N-type and P-type silicon on the rear side which increases efficiency by eliminating the need for front exposed busbars which partially shade the cell. The SunPower IBC cells are built on a base of high purity N-type silicon which also increases performance and has the low degradation rate which is how SunPower can offer the leading performance warranty of 92% retained capacity after 25 years on both the E series and X series as well as the new generation Maxeon 2 and Maxeon 3 series.
The current generation (3 & 4) IBC cells from SunPower are the smaller format 5” (125mm x 125mm) size configured in a 96-cell layout with 8 rows of 12 cells. Almost all other manufacturers have moved to the 6” (156mm x 156mm) cell size which make up the common 60 cell panel. Cell size doesn’t affect performance but more cells does equate to a higher voltage which can be problematic for domestic installations which can have a voltage limit of 600V (depending on country). A higher voltage means less panels can be linked together in a string before the upper voltage limit is reached.
Maxeon 2 and Maxeon 3 - New 104 cell format
The latest generation panels from SunPower simply named the Maxeon 2 and Maxeon 3 use even more cells, in a new 104 cell format with 8 rows of 13 generation 3 cells, to create the worlds most powerful residential solar panel at 400Wp. The full series Maxeon 3 panels ranges from 370 to 400W and will replace the X Series while the Maxeon 2 panels ranging from 340W to 360W will replace the E series.

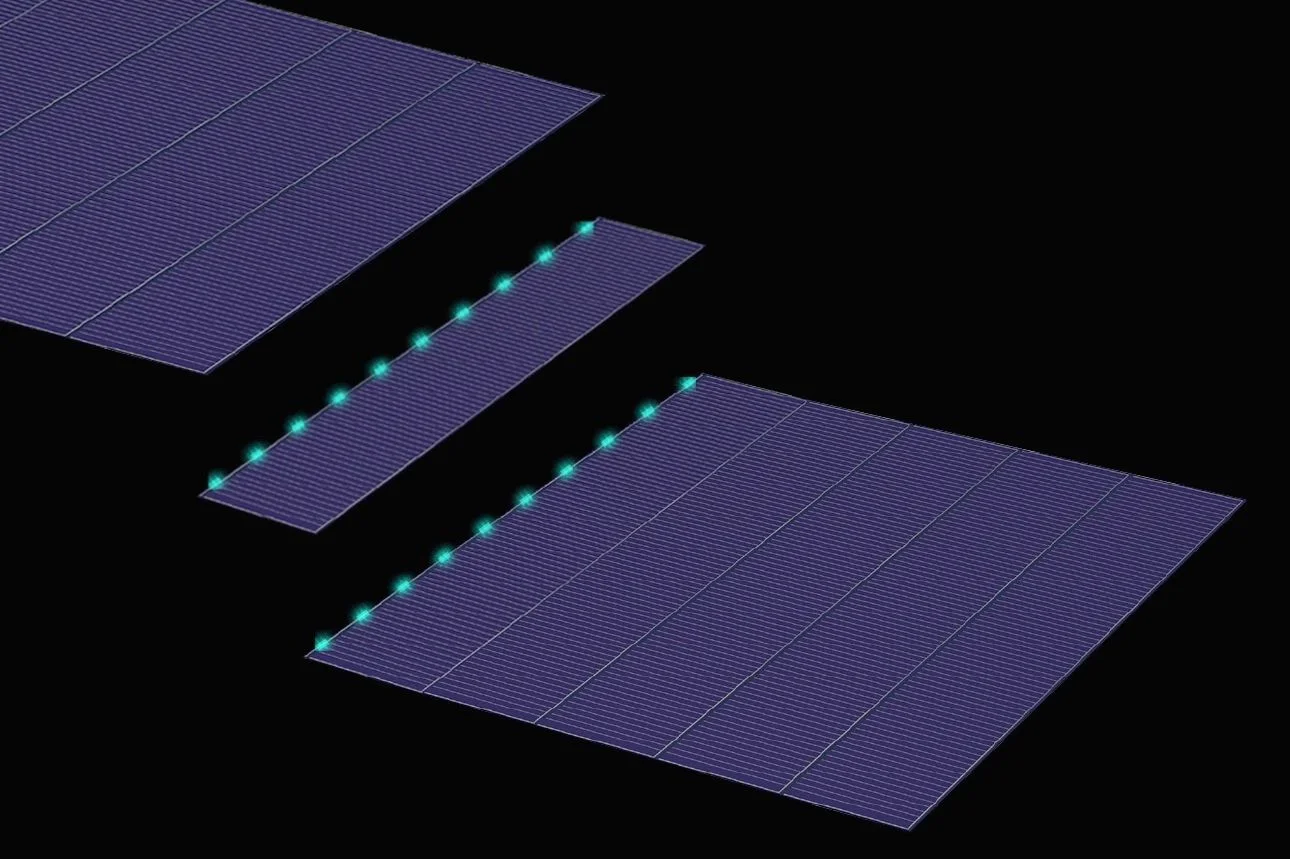

Shingled cells are an emerging technology which use overlapping thin cell strips assembled horizontally or vertically across the panel. The SunPower P series panels uses the vertical format with 6 long cells in parallel, which offer additional shade tolerance when partially shaded as each long cell works independently. The thin shingled cells are also more flexible and less prone to micro-cracking which is a common issue with conventional full size square cells. These are made by laser cutting a normal full size cell in to 5 or 6 strips and layering them in a shingle configuration using rear side connection adhesive. The slight overlap of each cell strip hides a single busbar which interconnects the cell strips. This unique design covers more of the panel surface area as it doesn’t require front side busbar connections which partially shade the cell, thus increasing the panel efficiency much like IBC cells.
The P series uses conventional P-type silicon cells which although not as efficient as the high performance N-type are much more cost-effective but still achieve a high efficiency of 19%. Backed by the SunPower 25 manufacturer’s warranty.
The SunPower Range of Panels
With the addition of the Performance P series SunPower now have a more diverse range of panels for residential and commercial applications. The top of the line E and X series use the high efficiency IBC cells compete in the premium end of the market while the more price competitive performance P-series using the overlapping shingle cell design complete more in the commercial market.
The X series is the flag ship of the SunPower range and is available in a range of models for both residential and commercial installations. The model numbers represent the efficiency with the base model X20 being just over 20% efficient, the X21 with a maximum of 21.4% efficiency and finally the X22 tops the range with an impressive 22.2% maximum efficiency.
The current X-series utilises a less common 96 cell format using smaller high grade ‘Maxeon’ IBC cells with the lowest rate of degradation and best 25-year performance warranty today. The SunPower Maxeon IBC cells have an outstanding warranty with a guarantee of 92% retained capacity after 25 years of use.
X22 series – 96 cell – 360 to 370W - Monocrystalline IBC N-type
X21 series – 96 cell – 340W - Monocrystalline IBC N-type
The E series from SunPower uses the previous generation Maxeon IBC cells which are slightly less efficient but are still based on the long-lasting N-type silicon substrate and offer an extremely high-performance warranty with an impressive 88% retained power rating after 25 years.
Like the X series the E20 model name refers to the efficiency with a power rating of 327W and a panel efficiency of 20.1%, making it still one of the most efficient panels available.
E20 series – 96 cell – 327W - Monocrystalline IBC N-type
As described in detail earlier the Performance or P series panels use the unique shingled cell design with 6 long cells in parallel. This design offers are most more cost effective and offer additional shade tolerance when partially shaded. The thin singled PERC cells based on the common P-type silicon are also more flexible and less prone to micro-cracking which is a common issue with conventional full-size square cells.
Despite being based on standard P-type silicon SunPower still offers an impressive 25 year performance warranty as well as a 25 year manufacturer’s warranty.
P19 series – Shingled cell – 385W - Monocrystalline P-type
New Maxeon Series to replace E and X Series
The latest generation panels from SunPower named Maxeon 2 and Maxeon 3 and will replace the long standing E and X series and will be based on the slightly larger 104 cell format.
The Maxeon 3 is the new flag ship of the SunPower range and is available in a range of sizes from 370 to 400Wp for residential installations. Based on the Gen 3 high performance IBC cell technology the new 104 cell format increases power output further and tops the range with an impressive 22.6% maximum efficiency, making it the most efficient residential solar panel in the world.
See the full SunPower Maxeon 3 Specification sheet here
Like the Maxeon 3, the new Maxeon 2 panel is based on the Gen 3 high performance IBC cell technology and uses the same 104 cell format to increase power output further and tops the range with a 20.4% maximum efficiency. However as it is based on the slighlty lower spec IBC cells the Maxeon 2 panels have a lower power rating of 340 to 360Wp, making them also much more affordable but still some of the most powerful residential panels available.
See the full SunPower Maxeon 2 Specification sheet here
New ‘A Series’ Coming soon
Next Generation Technology
SunPower announced early in 2019 its latest generation A series panels using what it has termed the NGT or Next Generation Technology IBC (Interdigitated Back Contact) 'Maxeon Gen 5' cells. These new larger formats 6” cells will be fabricated on a new line at its manufacturing plant in Malaysia.
The new design will be assembled into an impressively powerful 400 to 415W panel which will be the highest rated residential panel available. However, in an unusual move the A series will incorporate a micro inverter from Enphase energy and will only be available in the US market. It is expected to be available internationally once the production volume increases and the older E series lines are upgraded to the new larger format.
A22 series – 66 cell – 400 to 415W - Monocrystalline IBC N-type (Gen 5)
Warranty and service
SunPower offer a leading performance warranty on the E and X series which both utilise the Maxeon IBC cells based on N-type silicon. The X series has an outstanding warranty with a guarantee of 92% retained capacity after 25 years of use.
The exact warranty details from the SunPower warranty certificate are as follows: “The power of the PV Modules will be at least 98% of the Minimum Peak Power2 rating for the first year, and will decline by no more than 0.25% per year for the following 24 years, so the power output at the end of the final year of the 25th year warranty period will be at least 92% of the Minimum Peak Power rating (the “Guaranteed Peak Power” rating)”
See the full SunPower warranty certificate here.
Cradle to cradle certified
The SunPower E-Series and X-Series Panels made in Mexico and France are the world's first solar panels to be Cradle to Cradle CertifiedTM which makes SunPower the worlds leading manufacturer when it comes to sustainability.
See the full detail about the SunPower cradle to cradle certification here
SunPower is still regarded as a leading solar panel producer with very few manufacturers competing at the same level of performance and quality. In terms of outright efficiency SunPower still leads the world with the X series being the most efficient solar panel with lowest degradation and best performance warranty on the market. Although not surprisingly the X series is also the most expensive panel on the market, but like most things quality comes at a price. Considering solar is a long-term investment, the higher price also equates to better performance with more energy generation over the life of the system.
The financial issues faced by SunPower over recent years has raised some concerns over the ability for SunPower to honor the long-term warranty commitments, but despite this SunPower is still ranked as number one in the US and many parts of the world by installers and customers alike. In contrast the limited supply and distribution in other markets like Asia and Australia, SunPower does not have a large presence and the very high price of the E and X series can be difficult to justify when other manufacturer’s can offer similar performance and quality at a lower price.
The new P series on the other hand has been very successful in the commercial solar sector being more cost-effective and backed by one of the best warranties available. With the financial outlook improving and the next generation A series panels coming in 2019 it looks like SunPower may continue to be an industry leader for some time to come.
